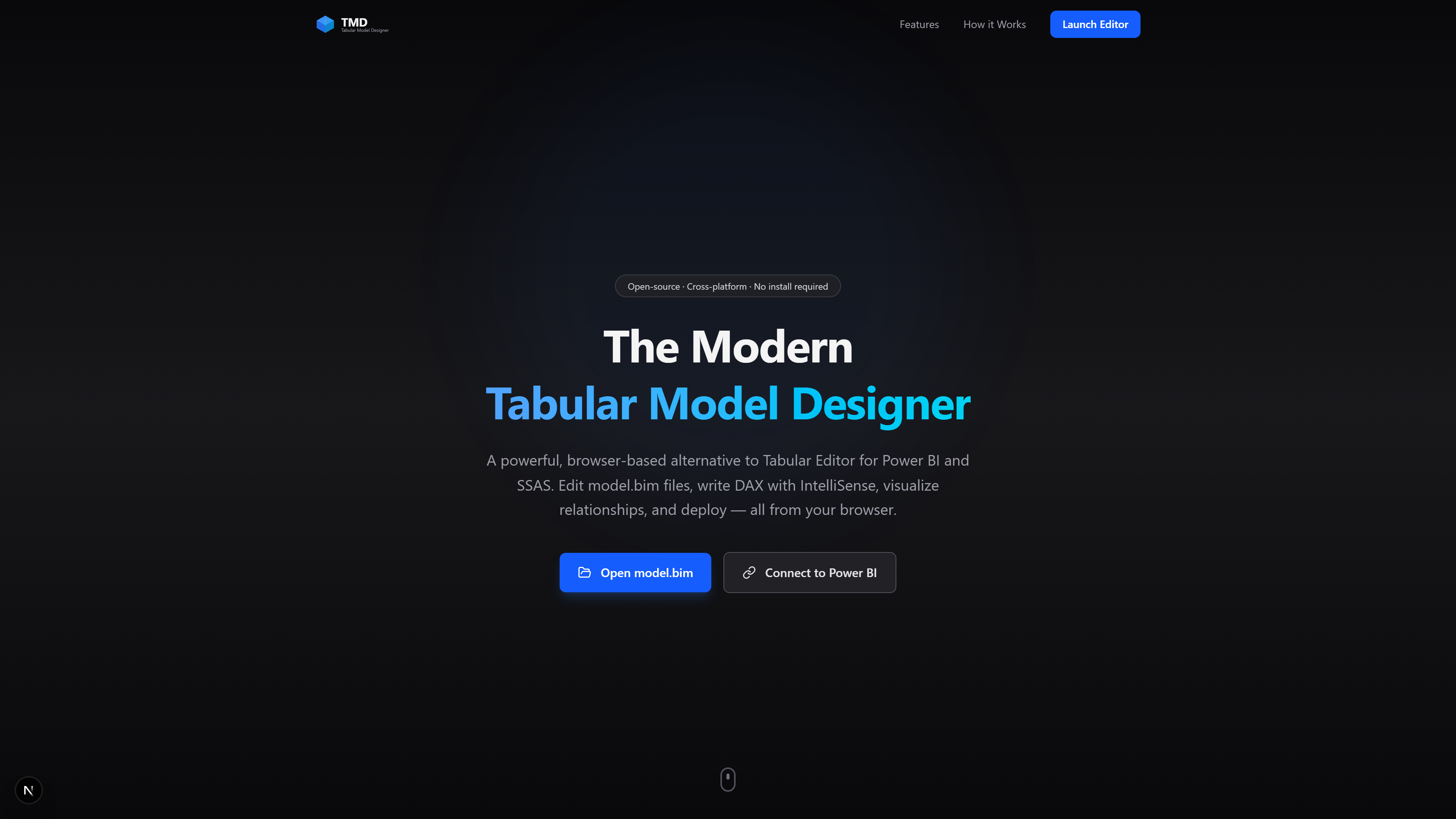

TMD — Tabular Model Designer
A browser-based semantic model editor for Power BI and SSAS — a modern, cross-platform alternative to Tabular Editor. Open a model.bim file or connect straight to a Power BI workspace, explore the full Tabular Object Model, write DAX with IntelliSense, visualise the star schema, run best-practice rules, let AI propose reviewed edits, and deploy back with an incremental diff — all without installing anything.
Problem Solved
Serious Power BI semantic model development happens outside Power BI Desktop — in Tabular Editor, a Windows-only desktop tool. Mac and Linux data modelers, locked-down corporate machines, and anyone wanting a zero-install workflow are left out. And even on Windows, the modelling workflow is disconnected from the modern review culture of software teams: no diff preview before deploy, no audit trail of what changed, and no safe way to let AI touch a production model.
TMD moves the entire workflow into the browser. A round-trip TMSL parser/serializer means a model.bim file opened, edited, and saved in TMD is byte-faithful to what Tabular Editor or Visual Studio would produce. Direct Power BI / Fabric connectivity means the same editor works against live workspace models — with a real change diff and explicit confirmation before anything destructive happens.
Key Features

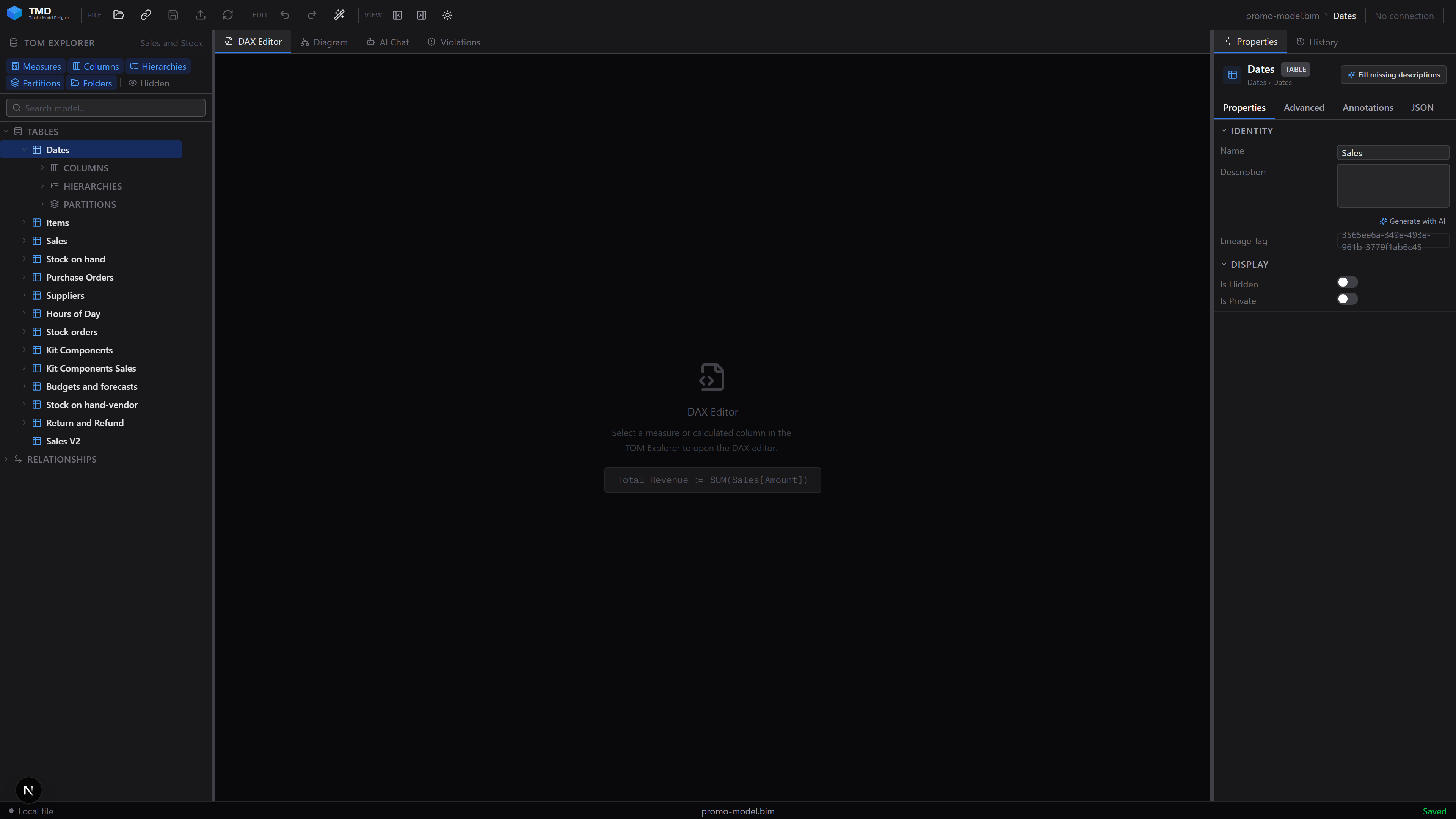

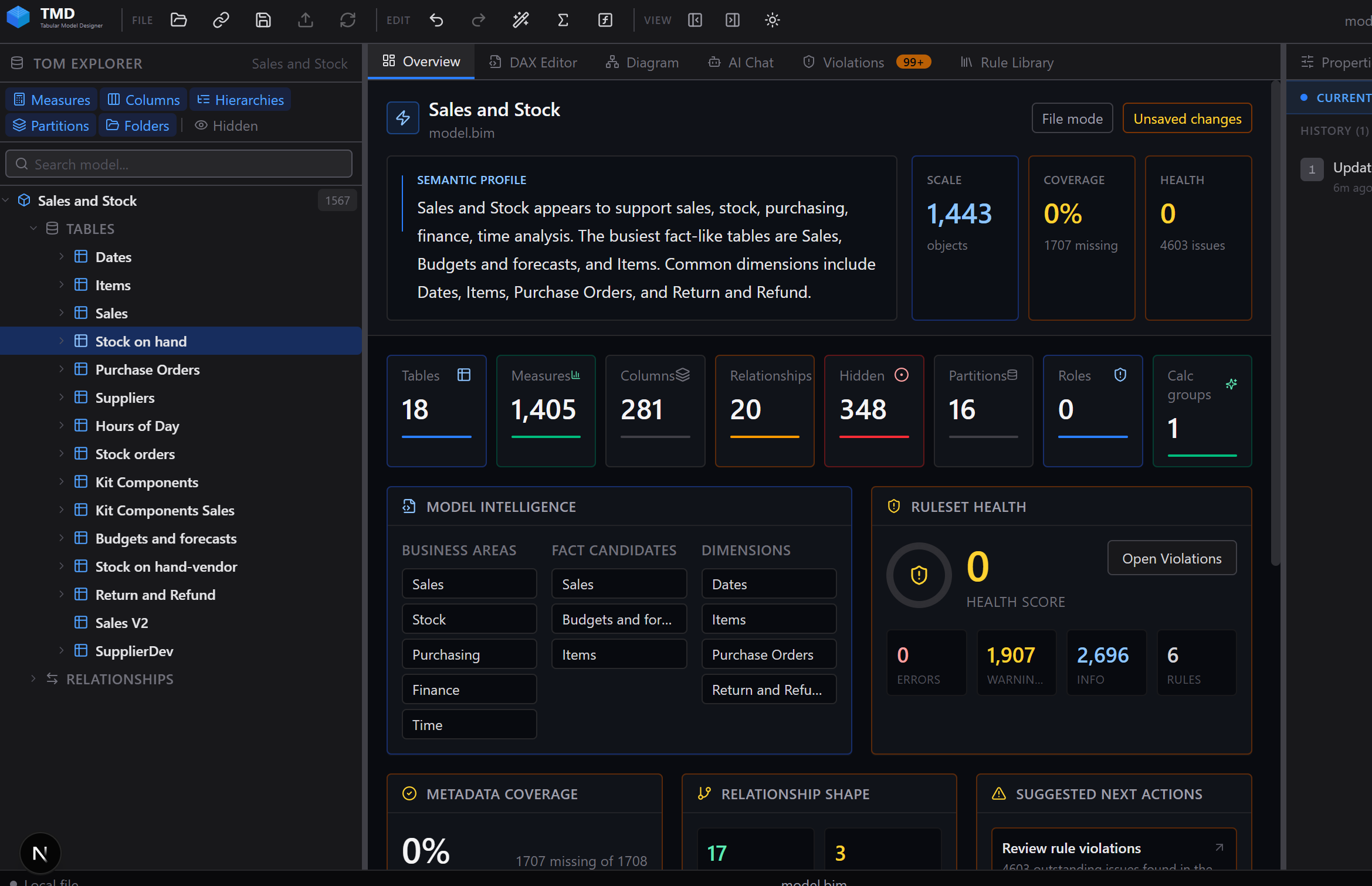

Full TOM Explorer
A virtualised tree of the complete Tabular Object Model — tables, columns, measures, hierarchies, partitions, relationships, roles, perspectives, calculation groups — with multi-select, inline rename, per-type context menus, display-folder grouping, visibility filters, and Tabular Editor-style keyboard shortcuts (F2, Del, Ctrl+C/V/D/A).

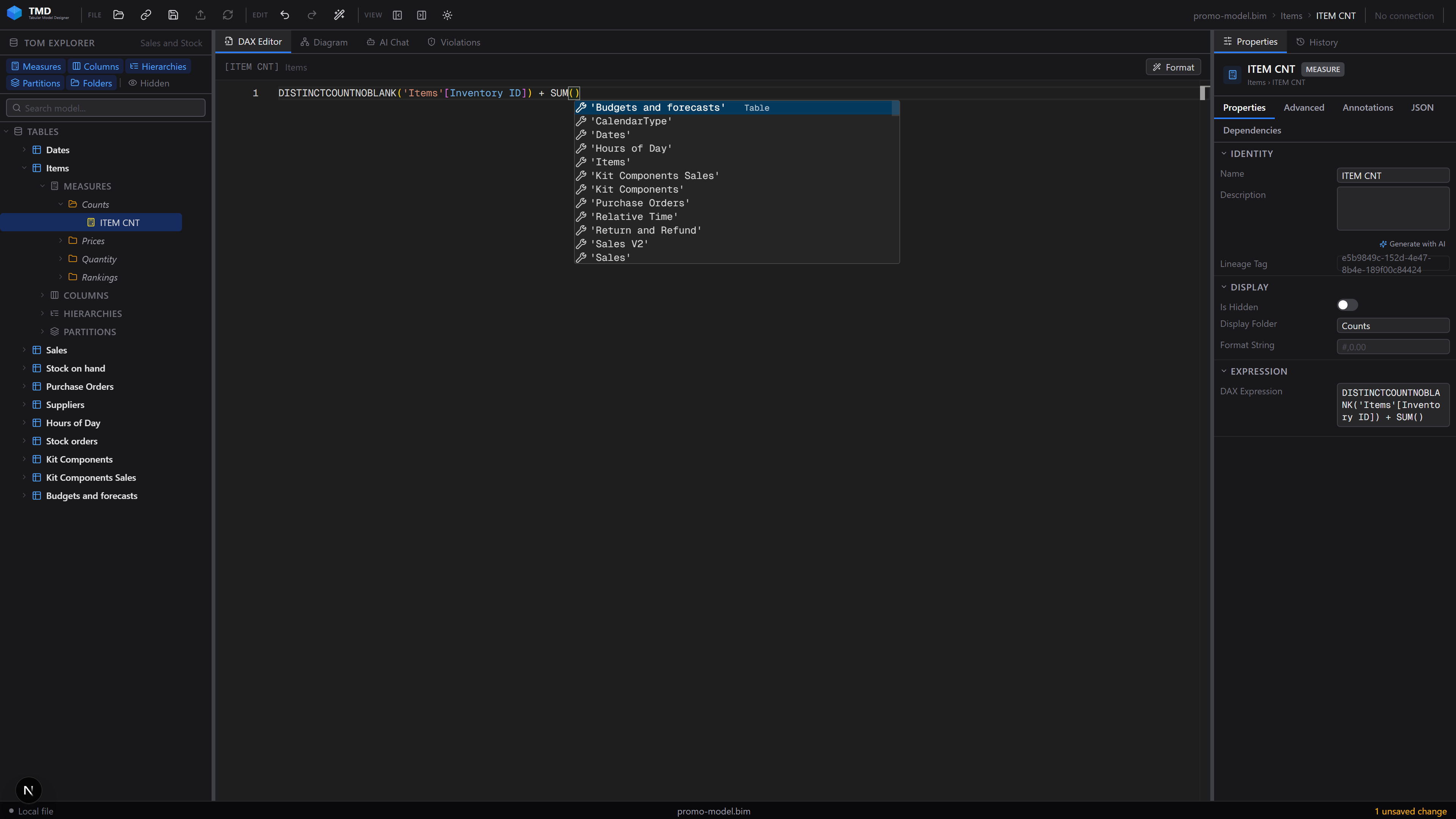

DAX Editor with Model-Aware IntelliSense
Monaco Editor with a custom DAX tokenizer. Completions are sourced live from the open model — table names, column references, measures — alongside the full DAX function catalogue with hover documentation. One click formats every measure in the model.

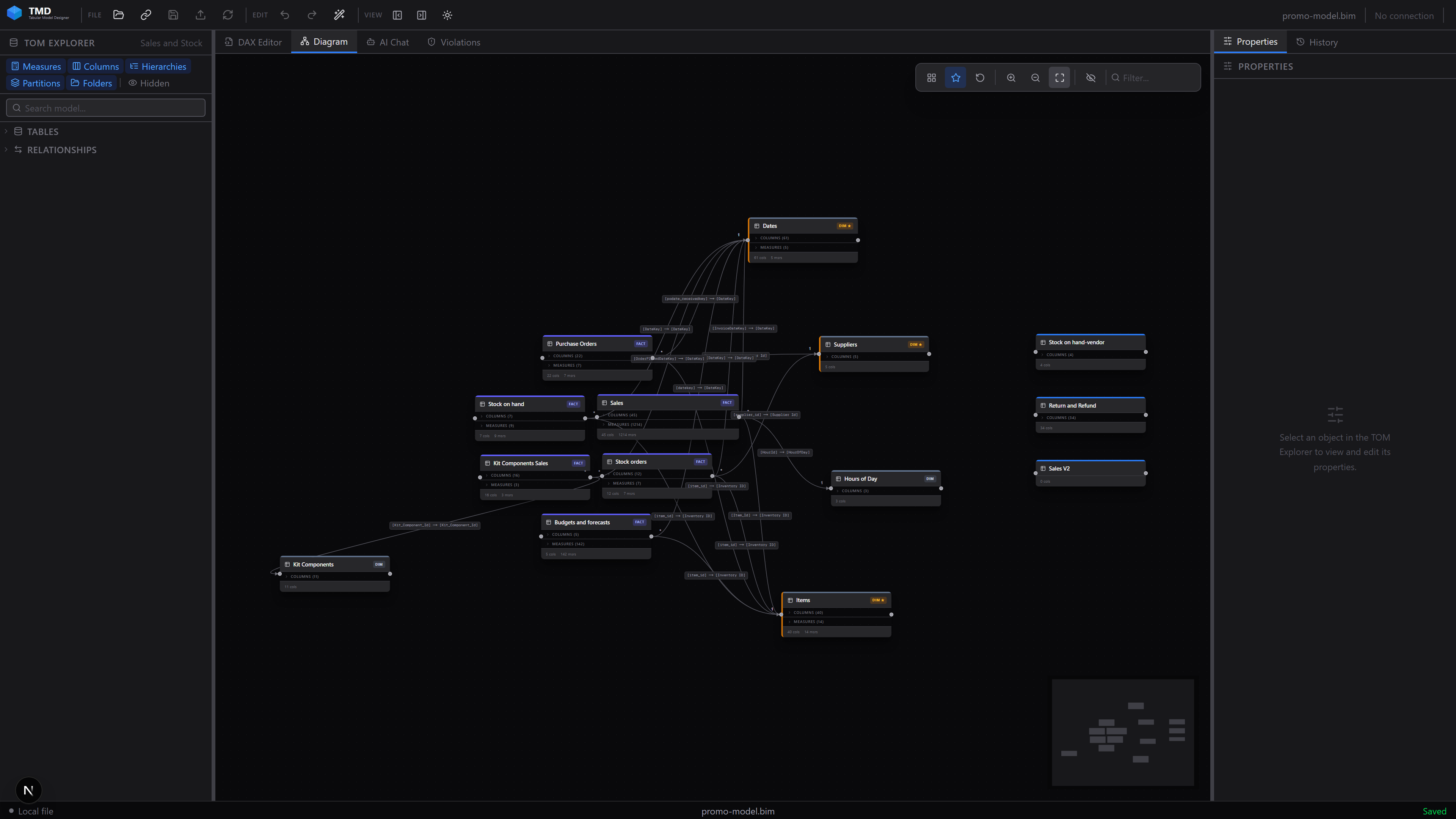

Relationship Diagram
An interactive schema diagram with three auto-layouts, including a star-schema layout that clusters fact tables and rings the dimensions. Tables carry FACT / DIM badges, conformed dimensions are highlighted, and edges show cardinality and cross-filter direction on hover. Positions persist per model.

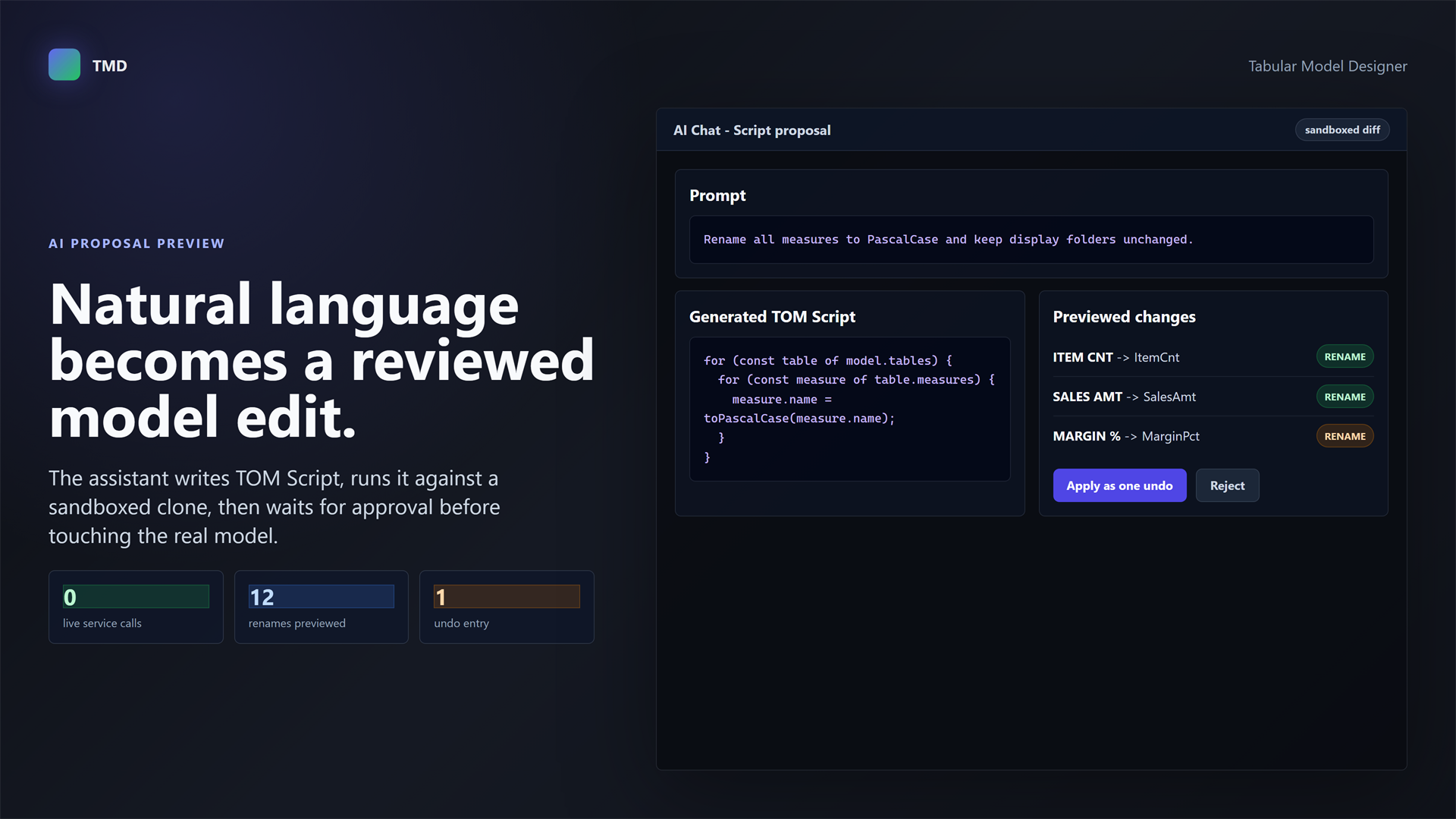

AI Editing with a Review Gate
A streaming Claude chat that doesn't just talk about the model — it writes TOM Script, a sandboxed scripting API over the model. Every AI proposal runs against a cloned model first, renders a diff preview card, and waits for Apply/Reject. Applied changes land as a single undo entry, through the exact same mutation layer as manual edits.

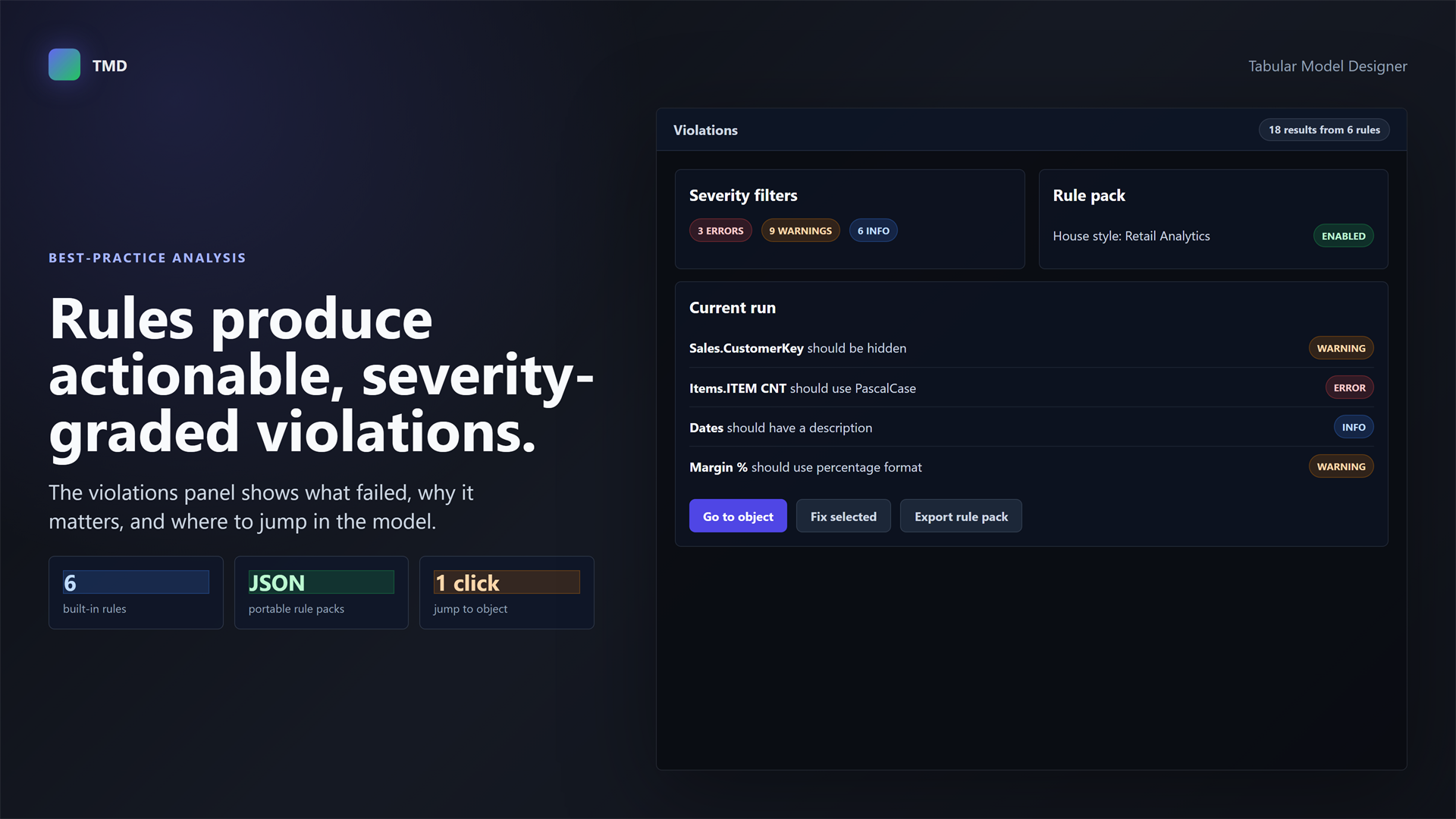

Best-Practice Rule Engine
The same TOM Script engine powers a BPA rule library: built-in rules plus importable/exportable JSON rule packs, per-rule severity, and a violations panel with jump-to-object navigation.

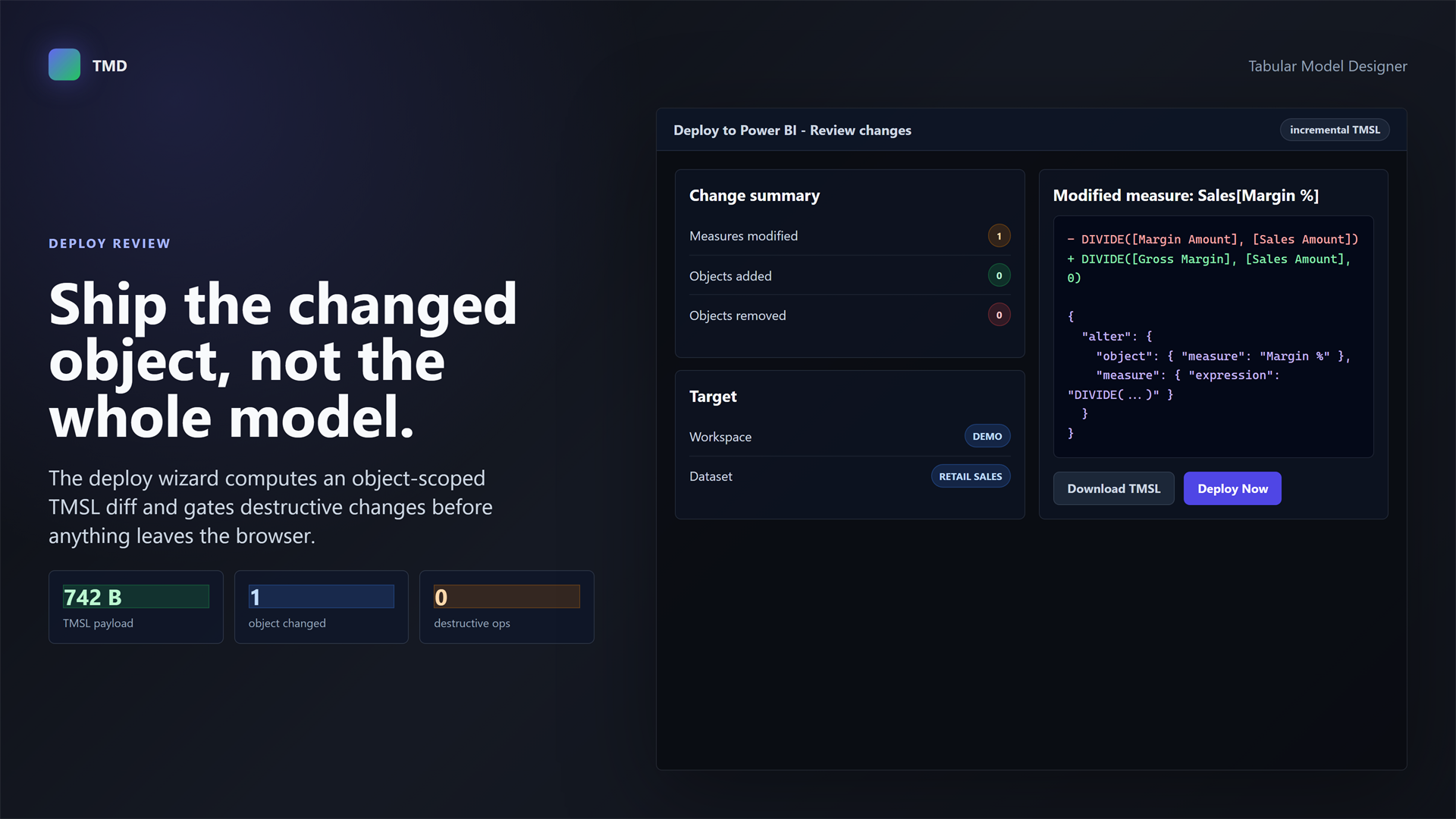

Deploy with a Real Diff
Connect to a Power BI workspace via Azure AD, load the model through the Fabric REST API, and deploy back with incremental TMSL — object-scoped alter/create/delete commands instead of an all-or-nothing overwrite. The deploy wizard shows added/modified/removed objects with Monaco before/after views for DAX changes, and destructive deploys require explicit confirmation.

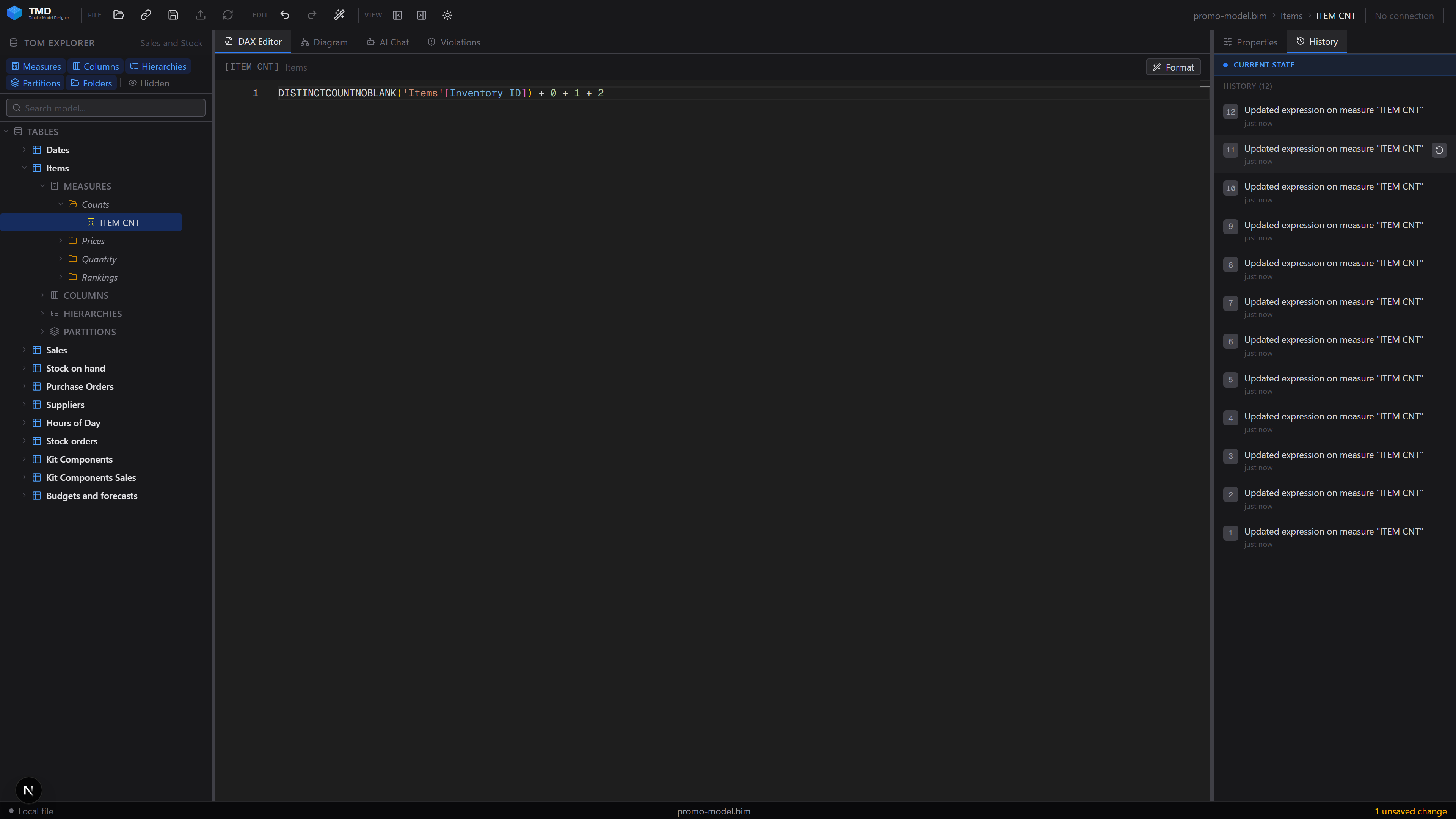

Time-Travel History
200 levels of command-pattern undo/redo with a history panel: every action is described and timestamped, and any past state can be restored with one click — including states from applied AI edits.
Architecture
Architecture Overview
A TypeScript TOM type system with a round-trip TMSL parser/serializer (model.bim JSON ⇄ typed TOM objects) sits at the core, preserving full fidelity across tables, partitions, relationships, roles, perspectives, calculation groups, KPIs, and annotations. On top of it, one sandboxed scripting engine — TOM Script — serves both the AI's script execution tool and the best-practice rule pipeline.
- State: a single Zustand store with Immer, all mutations flowing through pure action functions, wrapped by a custom history middleware implementing command-pattern undo/redo; batch operations collapse to single undo entries
- Scripting: TOM Script — a sandboxed JavaScript API (LINQ-style collections and object proxies over a cloned model) with static validation and runtime scope-shadowing that blocks eval, fetch, DOM access, and timers, capped at 50k mutations and a 5-second timeout
- AI layer: Vercel AI SDK v6 streaming Claude with tool calling; proposals previewed as diffs client-side before commit, with server-side approval gating and per-user token budgets
- Connectivity: MSAL (Azure AD PKCE) with dual-scope token caching; discovery via the Power BI REST API, model load/deploy via the Fabric REST API, proxied through Next.js route handlers with SSRF host allow-listing
- UI: three-panel resizable layout (explorer / tabbed editors / property grid + history) on Radix primitives and Tailwind 4, Monaco for code surfaces, react-arborist for the tree, React Flow + dagre for the diagram
- Auth & persistence: NextAuth.js v5 (email/password, Microsoft Entra ID, Google SSO) with Prisma on Postgres; deployed on Vercel
- Quality: Vitest unit/integration suites (parser round-trips, store history, sandbox security) and Playwright end-to-end flows
Key Decisions
One mutation layer for humans, rules, and AI
Every change — a keystroke in the property grid, a BPA rule fix, an AI-generated script — flows through the same pure action functions and history middleware. That's what makes "undo an AI edit" trivial rather than terrifying, and it eliminated an entire class of state-drift bugs.
AI proposes, never applies
Rather than letting the model call mutation tools directly, the AI writes TOM Script that executes against a sandboxed clone. The user sees the resulting diff and approves or rejects. This keeps a powerful capability — bulk model refactoring in one prompt — inside a review gate: the AI is a junior developer whose PRs always get read.
Incremental TMSL over full overwrite
Deploying a 1,400-object model shouldn't mean replacing the whole database definition. TMD computes an object-scoped diff and emits targeted alter/create/delete TMSL commands, falling back to a full deploy only past a threshold. Smaller blast radius, faster deploys, and a diff the user can actually read before confirming.
Screenshots
